Rubber hoses X-ray inspection case story

X-ray Based Automatic Detection Of Internal Particles, Inclusions and Holes In Rubber Hoses

During past few years, InnospeXion has developed a unique real-time X-ray imaging technology, based on using a part of the X-ray spectrum not used in other imaging applications. Along with a very high image resolution of 0.1 mm, this innovation has unveiled a substantial improvement of the on-line detection capability, thus enabling the usage for on-line inspection tasks – especially involving rubber and other low density materials.

SEEING THE INVISIBLE

The X-ray technology was originally developed for packaging automation control. However, it has also proven to be superior to any other technology for automatic detection of manufacturing imperfections, such as inclusions, particles, salt deposits, side holes and other defects.

The system can operate with 4 lines, with automatic reject signalling, in real time. The method is suitable for hoses and tubes with a wall thickness up to 3 mm, and production speed from 1 to 200 m/min.

The technology is used in e.g. rubber hose production for automatic detection of manufacturing irregularities that may have significant implication towards the final application of the product. Internal particles, salt grains and deposits, holes and other defects may cause leakage or blocking the fluid flow in the hose upon installation. The detection and rejecting of hose parts with these defects is therefore a need towards ensuring the end-users acceptance of the product.

Low energy X-rays are ideal for the detection of extruded product manufacturing irregularities, on-line. The method may be used from slow to very high speed manufacturing. The X-ray system is controlled by a PLC, which keep track of the timing and ensures signal giving for the 4 lanes that may be covered by one X-ray system.

The system is simple, robust, compact, and easy to service. It features a tailored design, has a long lifetime, and is fully automatic. We take pride in integrating the hose defect detection system into existing production lines, along with required automation and auxiliary equipment.

Rubber hoses X-ray inspection system

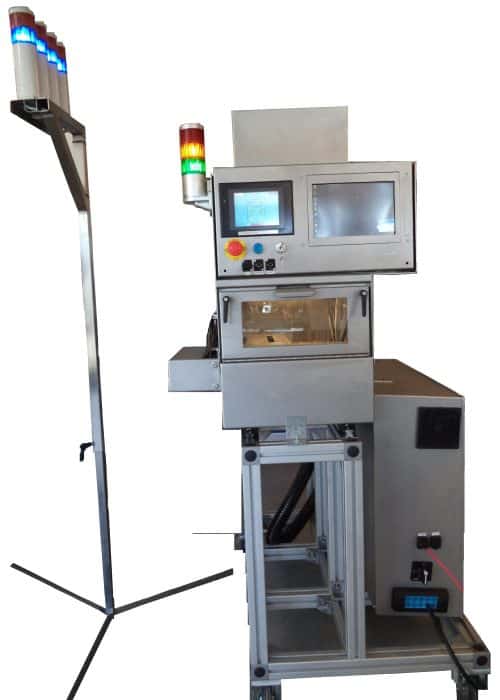

Fig. 0. Layout of the InnospeXion X-ray system designed for rubber hoses inspection. The system can detect particles down to 0.5 mm in diameter in hoses with wall thickness of up to 1.5 mm, at line speed of 30 m/min. At the same conditions, holes are detected with diameters from 0.3 mm. Typical false reject rate is less than 0.5 percent, or less than 0.5 meter false reject for 100 meter hose.

DETECTION PERFORMANCE

The InnospeXion extruded product defect detection system is based on the newest and most effective X-ray technology. The technology has been proven in numerous applications during the last ten years, and has been further developed to satisfy the requirements in the extruded product industry, notably concerning robustness, cleaning, and detection performance.

Tailoring towards the customer’s need is an essential key point of the integration of the technology in different production lines. InnospeXion supplies auxiliary equipment for in-feed, out-feed, sorting, reject arrangements, timing control and overall system integration.

When a defect is detected, a signal is sent from a PLC to a reject arrangement, one signal for each line (maximum 4 lines per X-ray system). Different settings can be applied to obtain a sorting of products into different categories of product. The accurate location of defects can be (or is) transferred to a marking or cutting arrangement.

The low X-ray energy gives a very high contrast for even small manufacturing irregularities. At the same time, the high imaging resolution implies that a defect is represented by many pixels. This highly improves the software recognition of a defect. Special imaging technologies are implemented in order to accommodate high manufacturing speed – up to 200 m/min. The examples below show typical defect images acquired during production.

For extruded products such as rubber hoses, the typical performance is the detection of particles down to 0.5 mm in diameter in hoses with wall thickness of up to 1.5 mm, at line speed of 30 m/min. At the same conditions, holes are detected with diameters from 0.3 mm. Typical false reject rate is less than 0.5 percent, or less than 0.5 meter false reject for 100 meter hose.

Rubber hoses defect detector X-ray system

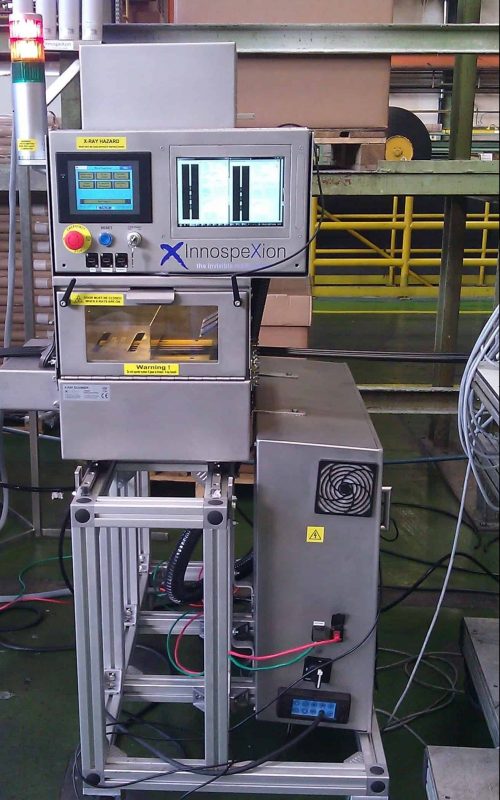

Fig. 1. On-site image of the InnospeXion X-ray system designed for rubber hoses inspection. The hose defect detection systems has been integrated into existing production lines, along with required automation and auxiliary equipment.

extruded rubber hoses x-ray

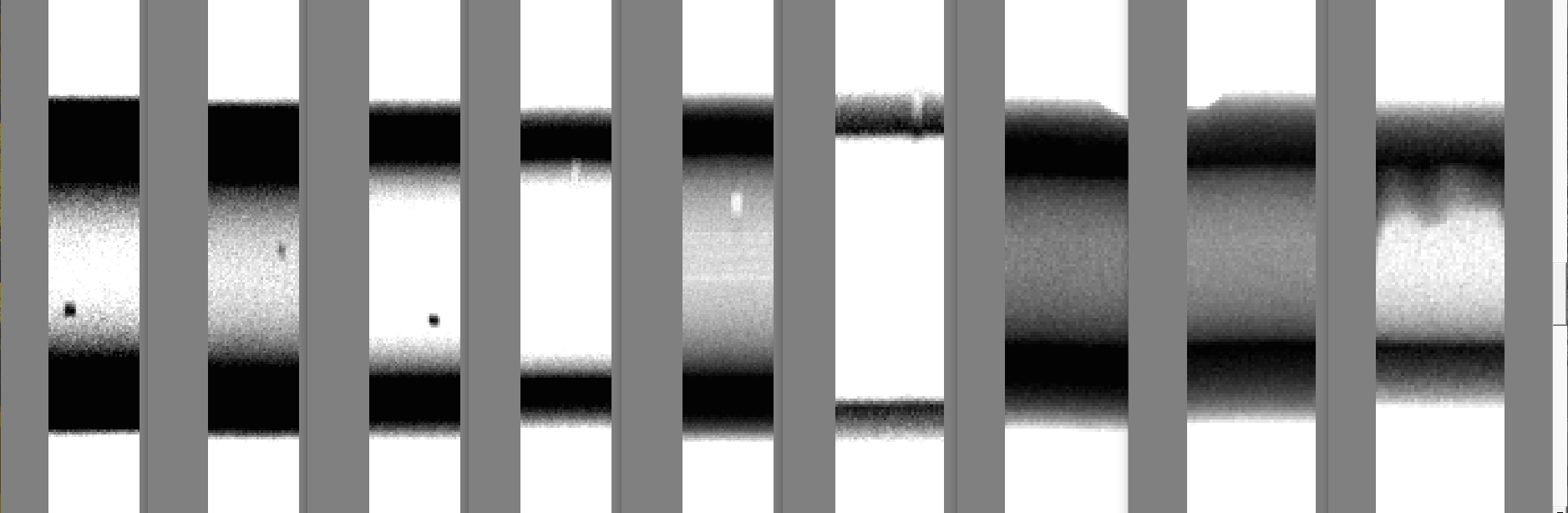

Fig.2 Sequence compilation of typical defects acquired during production, such as cracks in seals, internal particles, salt grains, deposits and holes. The images were obtained as the result of a scanning process with the speed of 100m/min.

Larger wall thickness and faster speed has an impact of the probaility of detection, which is gradually lowered. The detection requires that the product is free of water and other external (or internal) contamination. It is also important that the product is guided through the X-ray system without severe vibration or other high frequency movement. For multiple lane systems, maximum product diameter (or width) is around 20 mm.

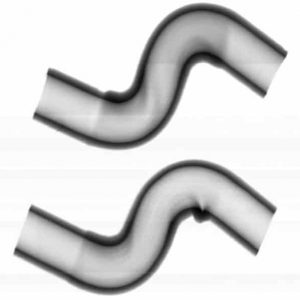

Fig.3 Examples of typical defects acquired during production, such as cracks in seals, internal particles, salt grains, deposits and holes.

extruded rubber hoses x-ray
