GENERAL SECURITY -
X-RAY SYSTEMS

The innovative solution is to use multiple energy (spectral) data acquisition in a very specific manner, so that an image is created which includes information on the specific materials
represented in the inspected luggage, with
automatic identification of threat items.

This technology is cost-effective for general security tasks, e.g for applications relative to big audiences, exhibitions, cruises, hotels, etc. The big advantage is the ability to provide the assessment of threats posed by liquids, gels, and chemical compounds, in addition to the general X-ray image of the (bag) contents.

The approach is specifically relevant for general security applications where the time of the inspection is a critical parameter. The inspection is based on an automatic recognition of threat compounds and therefore will speed up the human decision taking meaning less time per scanned “person”. In addition, the ability to determine a threat substance with a high probability gives much more value.

Airport security inspection system for carry on luggage - X-ray system 2

THE VALUE OF LOW-ENERGY X-RAY TECHNOLOGY:

  • reducing loss and making best use of raw materials
  • better product classification and a better product price
  • avoiding customer complaints
  • a robust, reliable, and safe inspection technology
  • hygienic design guidelines

The concept uses multi-energy imaging detectors in combination
with intelligent pre-screening, a priori information, and large databases which allow

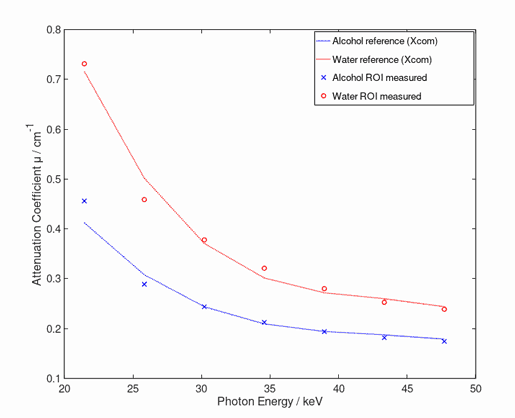

the fitting of the actual X-ray attenuation “profile” to a matching set of material combinations.

SPECIFICATIONS

The system has an integrated climate control system and can be used even in very warm climates. It integrates a long conveyor section, and the system is very rigid, built for remote deployment. Short startup time and easy closedown procedure add to the benefits.

The key benefit is the ability to identify threat liquids based on one single projection. The system is available for general security screening, based on human image interpretation, aided by the system threat identification. The system will inspect general bags up to 40 x 40 cm in cross-section and will provide an alarm to the operator if for any reason the inspection of the bag is problematic (due to content, threats, or otherwise). Inspection speed is 20 m/min. Typical throughput up to 0.5 people (bag) per second.

Airport security inspection system for carry on luggage – X-ray system 6

GENERAL SECURITY
CASE STORY

The innovative solution of a novel real time X-ray inspection concept is to use multiple energy (spectral) data acquisition in a very specific manner, so that an image is created which includes information on the specific materials represented in the inspected luggage, with automatic identification of threat items.

Read more about this security X-ray technology, which is cost-effective for general security tasks, e.g for applications relative to big audiences, exhibitions, cruises, hotels, etc.
